Clutch master cylinder removal
Moderator: Board Moderators
-
- Regular Poster
- Posts: 130
- Joined: Tue Aug 10, 2021 20:38
- Model: excel
- Colour: red
- Year: 1985
- Location: NL
- Contact:
Re: Clutch master cylinder removal
I don't see what the problem is, removing the clutch master cylinder is pretty straight forward, with not much in the way. A deep socket, and maybe an extension with a swivel is all it takes and (for a Lotus) there is hardly anything iin the way.
Compare that with the brakeservo, where you have to take the instrument cluster out, and then still have to work by feel and with most of the nuts obstructed by other parts
Compare that with the brakeservo, where you have to take the instrument cluster out, and then still have to work by feel and with most of the nuts obstructed by other parts
- Lotus-e-Clan
- Senior Poster
- Posts: 4460
- Joined: Thu Nov 30, 2006 13:25
- Model: Excel SE - EWP/Waterless!
- Colour: Not Blue or Green
- Year: 1989
- Location: Swaledale
Re: Clutch master cylinder removal
The problem is the Lotus position ...Marten wrote: ↑Sat Jul 16, 2022 20:54I don't see what the problem is, removing the clutch master cylinder is pretty straight forward, with not much in the way. A deep socket, and maybe an extension with a swivel is all it takes and (for a Lotus) there is hardly anything iin the way.
Compare that with the brakeservo, where you have to take the instrument cluster out, and then still have to work by feel and with most of the nuts obstructed by other parts
Peter K
-
- Regular Poster
- Posts: 130
- Joined: Tue Aug 10, 2021 20:38
- Model: excel
- Colour: red
- Year: 1985
- Location: NL
- Contact:
Re: Clutch master cylinder removal
Nah, just sit down on the garagefloor and work round the doorpost. No need to disappear upside down in the footwell, get a longer extension and give that left hand something to doLotus-e-Clan wrote: ↑Sat Jul 16, 2022 21:24The problem is the Lotus position ...Marten wrote: ↑Sat Jul 16, 2022 20:54I don't see what the problem is, removing the clutch master cylinder is pretty straight forward, with not much in the way. A deep socket, and maybe an extension with a swivel is all it takes and (for a Lotus) there is hardly anything iin the way.
Compare that with the brakeservo, where you have to take the instrument cluster out, and then still have to work by feel and with most of the nuts obstructed by other parts
Re: Clutch master cylinder removal
Has anyone any pictures of under the Dash, of the Clutch Master Cylinder to show exactly the Clevis Pin & the Bolts?
- Tanz
- Senior Poster
- Posts: 2081
- Joined: Thu May 03, 2007 22:05
- Model: SE
- Colour: Calypso Red
- Year: 1988
- Location: Wolverhampton
Re: Clutch master cylinder removal
Better join a Yoga class then
Cheers, Phil
Never take life seriously, nobody gets out alive anyway!
Never take life seriously, nobody gets out alive anyway!
- Alan_M
- Senior Poster
- Posts: 1135
- Joined: Sat Aug 12, 2017 01:17
- Model: Excel SE, Excel SA, Elan SE
- Colour: Red, red, white
- Location: South Wales
Re: Clutch master cylinder removal
This might help a bit.

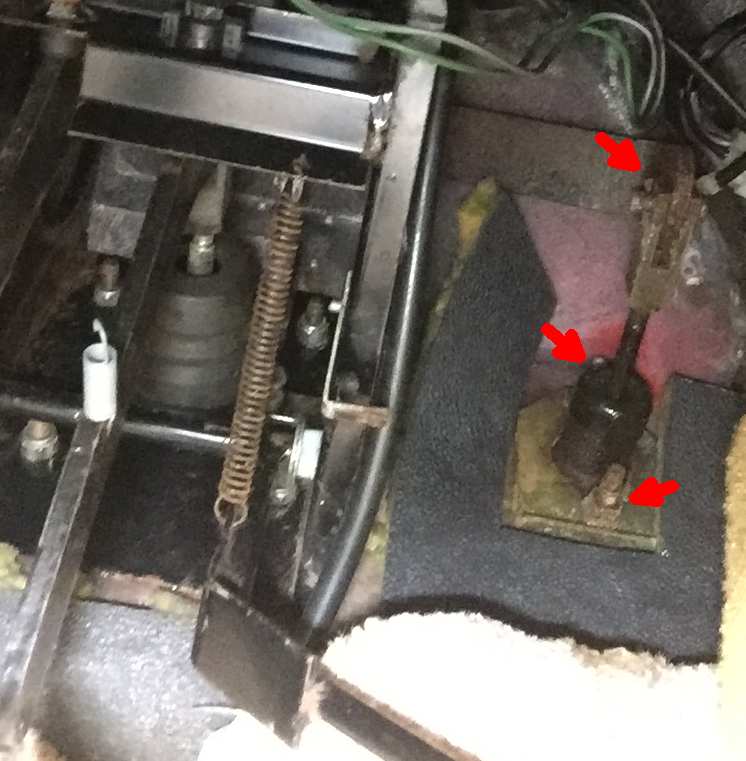

Photo shows the 2 holes for the clutch master cylinder studs to pass through the bulkhead.
The Clovis pin is just a pin that goes through the pedal and clutch rod. This is held in by a spring Clevis clip as here - https://uk.rs-online.com/web/p/clevis-p ... lsrc=aw.ds
Just pull this out of the pin and pin will easily push out.
Re: Clutch master cylinder removal
Thanks Alan. It's the Retaining Nuts & Clevis Pin, inside I am finding difficult to see where they are.
-
- Senior Poster
- Posts: 243
- Joined: Mon Aug 23, 2021 21:38
- Model: Excel SE
- Colour: Blue
- Year: 1990
- Location: Uffington
Re: Clutch master cylinder removal
I have to say, after replacing the master cylinder and using the 'Lotus position' to do it and then found I had to remove the Pedal box assembly as the fault was in fact a bent clutch pedal and having done that by removing the dash, removing the dash wins every time, it's so easy!
Of all the things I have lost I think I miss my mind the most...
1952 MG TD
1957 MGA 1500
1959 Austin Healey Sprite
1975 MG Midget 1500
1990 Lotus Excel
1952 MG TD
1957 MGA 1500
1959 Austin Healey Sprite
1975 MG Midget 1500
1990 Lotus Excel
Re: Clutch master cylinder removal
The last thing I want to do is remove the Dash.
Am I looking in the wrong place is it outside of the Pedal Box, on the Righthand side?
Am I looking in the wrong place is it outside of the Pedal Box, on the Righthand side?
-
- Senior Poster
- Posts: 243
- Joined: Mon Aug 23, 2021 21:38
- Model: Excel SE
- Colour: Blue
- Year: 1990
- Location: Uffington
Re: Clutch master cylinder removal
Yes it is. if you already have the instruments out, taking the rest of the dash out is really very easy.. took me about 15 mins, and 10 to put it back. Two screws each side, one in the middle and two on the transmission tunnel that's all that holds it in, the steering wheel has to come off as well and the gearstick, neither are a problem. Not sure what the fuss is about with removing it, makes life a LOT easier
Of all the things I have lost I think I miss my mind the most...
1952 MG TD
1957 MGA 1500
1959 Austin Healey Sprite
1975 MG Midget 1500
1990 Lotus Excel
1952 MG TD
1957 MGA 1500
1959 Austin Healey Sprite
1975 MG Midget 1500
1990 Lotus Excel
Re: Clutch master cylinder removal
I have removed the Slave Cylinder & Hose, very easy job to do with the Car on Axle Stands.
My problem is still trying to get the Master Cylinder out. I can't see it let alone remove the Clip & Pin, & then the Retaining Nuts.
I have even taken out the Seat, to give more room & the Fuse Cover also the Side Panel.
Think it's my age ( 70+ ) stopping me getting in the right position.
I wish I could just get someone that has done the Removal & Install of the Master Cylinder before to just do that bit for me. I wouldn't
even mind paying whatever it costs to do that part for me. I can manage the rest myself.
I have managed to find a New Master Cylinder ( with the 2 Studs at 12 & 6 ) + the Slave & Braided Hose for £154 Delivered.
Ian.
My problem is still trying to get the Master Cylinder out. I can't see it let alone remove the Clip & Pin, & then the Retaining Nuts.
I have even taken out the Seat, to give more room & the Fuse Cover also the Side Panel.
Think it's my age ( 70+ ) stopping me getting in the right position.
I wish I could just get someone that has done the Removal & Install of the Master Cylinder before to just do that bit for me. I wouldn't
even mind paying whatever it costs to do that part for me. I can manage the rest myself.
I have managed to find a New Master Cylinder ( with the 2 Studs at 12 & 6 ) + the Slave & Braided Hose for £154 Delivered.
Ian.
-
- Regular Poster
- Posts: 130
- Joined: Tue Aug 10, 2021 20:38
- Model: excel
- Colour: red
- Year: 1985
- Location: NL
- Contact:
Re: Clutch master cylinder removal
RED BARON wrote: ↑Tue Sep 06, 2022 13:48I have removed the Slave Cylinder & Hose, very easy job to do with the Car on Axle Stands.
My problem is still trying to get the Master Cylinder out. I can't see it let alone remove the Clip & Pin, & then the Retaining Nuts.
I have even taken out the Seat, to give more room & the Fuse Cover also the Side Panel.
Looks like you're trying to work from inside the car, don't.
Try sitting on the garagefloor on a piece of cardboard, legs under the door and work from outside, mostly with your left hand. Now all the bits are on eye level
You'll need a flashlight, needle nose pliers, a deep 13mm socket on a swivel and with a long 16-20" extension. Penetration oil doesn't hurt either
turn the clevis so that you can pull the hairsping out, if the pliers don't work get something with a hook through the closed end, push out the pin next and collect the washer
manipulate the socket on the nut of the slave, either by feel or by eye, keep some prrsure on the extension so the socket doesn't disengage and get the buggers off
Re: Clutch master cylinder removal
Oh thanks Marten.
I thought you had to get into some funny position inside, that's why I took the Seat out.
Didn't think you could reach just by sitting on the floor outside.
Tried taking some photos but the Fuse & Relay Board kept getting in the way. Even wedged the Pedal down, but still couldn't see Clip.
Will try again tomorrow.
Ian.
I thought you had to get into some funny position inside, that's why I took the Seat out.
Didn't think you could reach just by sitting on the floor outside.
Tried taking some photos but the Fuse & Relay Board kept getting in the way. Even wedged the Pedal down, but still couldn't see Clip.
Will try again tomorrow.
Ian.
Re: Clutch master cylinder removal
Marten did you try to put up a Image as it won't open?
Ian
Ian
-
- Regular Poster
- Posts: 130
- Joined: Tue Aug 10, 2021 20:38
- Model: excel
- Colour: red
- Year: 1985
- Location: NL
- Contact:
